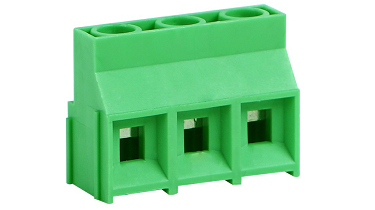

GT950R-9.5
| Approval |   |
|---|---|
| standard | ULIEC |
| Rated voltage | 300V750V |
| Rated current | 30A26A |
| Wire diameter | 26-10AWG1.5-4.0mm2 |
| spacing | 9.50mm |
| series | 2P-24P |
Description
Housing：PA66，UL94V-0
Contact：Brass
Screw：Steel，M3，Cr3+ Znplated
Cage：Brass，Ni plated
Withstanding voltage：AC3000V/1Min
Operating temperature：-40°Cto +105°C
Torque：0.5N.m（4.43Lb.in）
Stripping Length : 8-9mm
