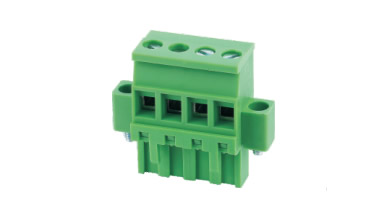

2EGTKAM-5.0/5.08
| Approval |   |
|---|---|
| standard | ULIEC |
| Rated voltage | 300V320V |
| Rated current | 15A18A |
| Wire diameter | 28-12AWG2.5mm2 |
| spacing | 5.0mm 5.08mm |
| series | 2P-24P |
Description
| Housing： | PA66; UL94V-0 |
| Contact： | Phosphor bronze |
| Screw： | Steel，M2.5，Cr3+Zn plated |
| Cage： | Brass，Ni plated |
| Withstanding voltage： | AC1600V/1Min |
| Operating temperature: | -40℃ to +105℃ |
| Torque: | 0.4N.m（3.5Lb.in） |
| Strip length: | 7mm |
